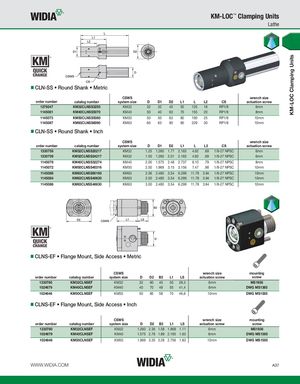

Каталог Widia инструментальная оснастка - страница 47
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
CLN-SS • Round Shank • Metric
CSWS wrench size
| order number | catalog number | system size | D | D1 | D2 | L1 | L | L2 | CS | actuation screw | |||
| 1279247 | KM32CLNSS3255 | KM32 | 32 | 32 | 45 | 55 | 125 | 18 | RP1/8 | 6mm | |||
| 1145081 | KM40CLNSS5070 | KM40 | 50 | 40 | 63 | 70 | 155 | 20 | RP1/8 | 8mm | |||
| 1145073 | KM50CLNSS5080 | KM50 | 50 | 50 | 63 | 80 | 190 | 25 | RP1/8 | 10mm | |||
| 1145087 | KM63CLNSS6090 | KM63 | 60 | 63 | 90 | 90 | 229 | 30 | RP1/8 | 10mm |
| �CLN-SS • Ro | und Shank • Inch | |||||||||
| order number | catalog number | CSWS system size | D | D1 | D2 | L1 | L | L2 | CS | wrench size actuation screw |
| 1330758 | KM32CLNSS20217 | KM32 | 1.25 | 1.260 | 1.77 | 2.165 | 4.92 | .69 | 1/8-27 NPSC | 6mm |
| 1330759 | KM32CLNSS24217 | KM32 | 1.50 | 1.260 | 2.01 | 2.165 | 4.92 | .69 | 1/8-27 NPSC | 6mm |
| 1145079 | KM40CLNSS32274 | KM40 | 2.00 | 1.575 | 2.48 | 2.737 | 6.10 | .79 | 1/8-27 NPSC | 8mm |
| 1145072 | KM50CLNSS40316 | KM50 | 2.50 | 1.969 | 3.15 | 3.156 | 7.47 | .98 | 1/8-27 NPSC | 10mm |
| 1145088 | KM63CLNSS60160 | KM63 | 2.36 | 2.480 | 3.54 | 6.299 | 11.78 | 3.94 | 1/8-27 NPSC | 10mm |
| 1145084 | KM63CLNSS40630 | KM63 | 2.50 | 2.480 | 3.54 | 6.299 | 11.78 | 3.94 | 1/8-27 NPSC | 10mm |
| 1145086 | KM63CLNSS48630 | KM63 | 3.00 | 2.480 | 3.54 | 6.299 | 11.78 | 3.94 | 1/8-27 NPSC | 10mm |
CLNS-EF • Flange Mount, Side Access • Metric
| order number | catalog number | CSWS system size | D | D2 | B2 | L1 | LS | wrench size actuation screw | mounting screw |
| 1330780 | KM32CLNSEF | KM32 | 32 | 60 | 40 | 50 | 28,3 | 6mm | MS1936 |
| 1024679 | KM40CLNSEF | KM40 | 40 | 70 | 48 | 55 | 41,4 | 8mm | DWG MS1365 |
| 1024646 | KM50CLNSEF | KM50 | 50 | 85 | 58 | 70 | 46,6 | 10mm | DWG MS1585 |
| order number CLNS-EF • F | catalog number lange Mount, Sid | CSWS system size e Access • Inch | D | D2 | B2 | L1 | LS | wrench size actuation screw | mounting screw |
| 1330780 | KM32CLNSEF | KM32 | 1.260 | 2.36 | 1.58 | 1.969 | 1.11 | 6mm | MS1936 |
| 1024679 | KM40CLNSEF | KM40 | 1.575 | 2.76 | 1.89 | 2.165 | 1.63 | 8mm | DWG MS1365 |
| 1024646 | KM50CLNSEF | KM50 | 1.969 | 3.35 | 2.28 | 2.756 | 1.83 | 10mm | DWG MS1585 |
