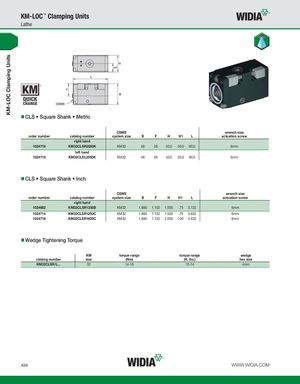

KM-LOC Clamping Units KM-LOC™ Clamping Units Lathe CLS • Square Shank • Metric CSWS wrench size order number catalog number system size B F H H1 L actuation screw right hand 1024718 KM32CLSR2050K KM32 48 28 40,0 20,0 90,0 6mm left hand 1024719 KM32CLSL2050K KM32 48 28 40,0 20,0 90,0 6mm CLS • Square Shank • Inch CSWS wrench size order number catalog number system size B F H H1 L actuation screw right hand 1024682 KM32CLSR1250B KM32 1.890 1.102 1.500 .75 3.122 6mm 1024714 KM32CLSR1250C KM32 1.890 1.102 1.500 .75 3.622 6mm 1024716 KM32CLSR1650C KM32 1.890 1.102 2.000 1.00 3.622 6mm Wedge Tightening Torque KM torque range torque range wedge catalog number size (Nm) (ft. lbs.) hex size KM32CLSR/L... 32 14-18 10-14 4mm A36 WWW.WIDIA.COM
