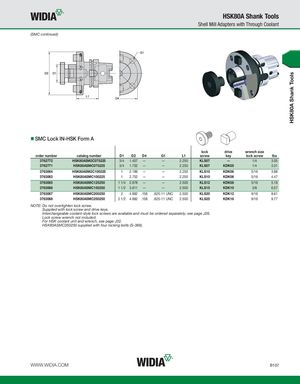

HSK80A Shank Tools HSK80A Shank Tools Shell Mill Adapters with Through Coolant (SMC continued) SMC Lock IN-HSK Form A lock drive wrench size order number catalog number D1 D2 D4 G1 L1 screw key lock screw lbs 3762772 HSK80ASM2C075225 3/4 1.457 — — 2.250 KLS07 — 1/4 3.05 3762771 HSK80ASMC075225 3/4 1.752 — — 2.250 KLS07 KDK05 1/4 3.31 3763064 HSK80ASM2C100225 1 2.189 — — 2.250 KLS10 KDK06 5/16 3.88 3763063 HSK80ASMC100225 1 2.752 — — 2.250 KLS10 KDK06 5/16 4.47 3763065 HSK80ASMC125250 1 1/4 2.878 — — 2.500 KLS12 KDK08 5/16 5.18 3763066 HSK80ASMC150250 1 1/2 3.811 — — 2.500 KLS15 KDK10 3/8 6.57 3763067 HSK80ASMC200250 2 4.882 .158 .625-11 UNC 2.500 KLS20 KDK12 9/16 8.61 3763068 HSK80ASMC250250 2 1/2 4.882 .158 .625-11 UNC 2.500 KLS25 KDK16 9/16 9.77 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32. HSK80ASMC250250 supplied with four locking bolts (S-388). WWW.WIDIA.COM B107
