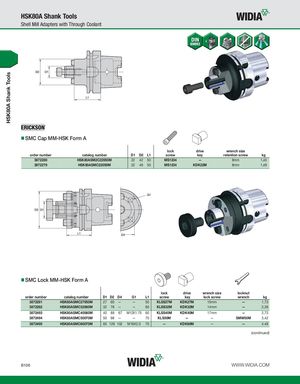

HSK80A Shank Tools HSK80A Shank Tools Shell Mill Adapters with Through Coolant SMC Cap MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 screw key retention screw kg 3872280 HSK80ASM2C22050M 22 42 50 MS1234 — 8mm 1,40 3872279 HSK80ASMC22050M 22 49 50 MS1234 KDK22M 8mm 1,49 SMC Lock MM-HSK Form A lock drive wrench size locknut order number catalog number D1 D2 D4 G1 L1 screw key lock screw wrench kg 3872281 HSK80ASMC27050M 27 60 — — 50 KLSS27M KDK27M 10mm — 1,73 3872282 HSK80ASMC32060M 32 78 — — 60 KLSS32M KDK32M 14mm — 2,39 3872493 HSK80ASMC40060M 40 89 67 M12X1.75 60 KLSS40M KDK40M 17mm — 2,73 3872494 HSK80ASMC50070M 50 98 — — 70 KLS50M — — SMW50M 3,42 3872495 HSK80ASMC60070M 60 129 102 M16X2.0 70 — KDK60M — — 4,49 (continued) B106 WWW.WIDIA.COM
