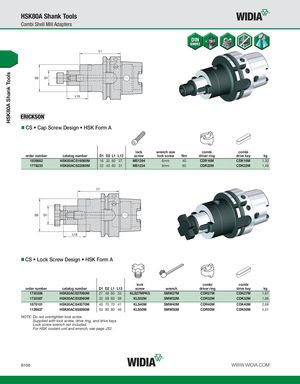

HSK80A Shank Tools HSK80A Shank Tools Combi Shell Mill Adapters CS • Cap Screw Design • HSK Form A lock wrench size combi combi order number catalog number D1 D2 L1 L13 screw lock screw Nm driver ring drive key kg 1839882 HSK80ACS16060M 16 32 60 27 MS1294 6mm 40 CDR16M CDK16M 1,33 1778235 HSK80ACS22060M 22 40 60 31 MS1234 8mm 60 CDR22M CDK22M 1,49 CS • Lock Screw Design • HSK Form A lock combi combi order number catalog number D1 D2 L1 L13 screw wrench driver ring drive key kg 1730386 HSK80ACS27060M 27 48 60 33 KLS27MPKG SMW27M CDR27M CDK27M 1,67 1730387 HSK80ACS32060M 32 58 60 38 KLS32M SMW32M CDR32M CDK32M 1,96 1878181 HSK80ACS40070M 40 70 70 41 KLS40M SMW40M CDR40M CDK40M 2,69 1126837 HSK80ACS50080M 50 90 80 46 KLS50M SMW50M CDR50M CDK50M 4,01 NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and drive keys. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32. B108 WWW.WIDIA.COM
