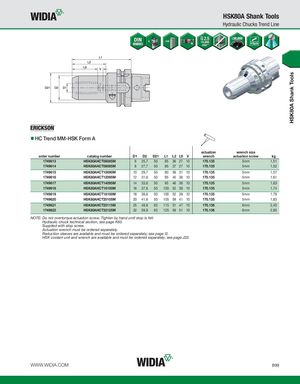

HC Trend MM-HSK Form A
actuation wrench size
| order number | catalog number | D1 | D2 | D21 | L1 | L2 L9 | V wrench | actuation screw | kg |
| 1749613 | HSK80AHCT06085M | 6 | 25,7 | 50 | 85 | 36 27 10 | 170.135 | 5mm | 1,51 |
| 1749614 | HSK80AHCT08085M | 8 | 27,7 | 50 | 85 | 37 27 10 | 170.135 | 5mm | 1,52 |
| 1749615 | HSK80AHCT10090M | 10 | 29,7 | 50 | 90 | 39 31 10 | 170.135 | 5mm | 1,57 |
| 1749616 | HSK80AHCT12095M | 12 | 31,6 | 50 | 95 | 45 36 10 | 170.135 | 5mm | 1,61 |
| 1749617 | HSK80AHCT14095M | 14 | 33,6 | 50 | 95 | 46 36 10 | 170.135 | 5mm | 1,63 |
| 1749618 | HSK80AHCT16100M | 16 | 37,6 | 50 | 100 | 52 39 10 | 170.135 | 5mm | 1,74 |
| 1749619 | HSK80AHCT18100M | 18 | 39,6 | 50 | 100 | 52 39 10 | 170.135 | 5mm | 1,79 |
| 1749620 | HSK80AHCT20105M | 20 | 41,6 | 50 | 105 | 58 41 10 | 170.135 | 5mm | 1,83 |
| 1749621 | HSK80AHCT25115M | 25 | 49,8 | 63 | 115 | 51 47 10 | 170.136 | 6mm | 2,45 |
| 1749622 | HSK80AHCT32125M | 32 | 59,8 | 63 | 125 | 59 51 10 | 170.136 | 6mm | 2,85 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
