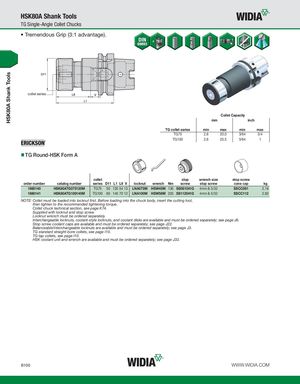

- Tremendous Grip (3:1 advantage).
collet series
Collet Capacity mm inch
| TG collet series | min | max | min | max | |
| TG75 | 2,6 | 20,0 | 3/64 | 3/4 | |
| TG100 | 2,6 | 25,5 | 5/64 | 1 |
TG Round-HSK Form A
| collet | stop | wrench size | stop screw | |||||||||
| order number | catalog number | series D11 L1 L9 V | locknut | wrench | Nm | screw | stop screw | cone cap | kg | |||
| 1860140 | HSK80ATG075120M | TG75 | 50 120 54 13 | LNA075M | HSW45M | 136 | SS081041G | 4mm & 5/32 | SSCC081 | 2,16 | ||
| 1860141 | HSK80ATG100140M | TG100 | 60 140 70 12 | LNA100M | HSW58M | 203 | SS112041G | 4mm & 5/32 | SSCC112 | 2,92 |
NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
