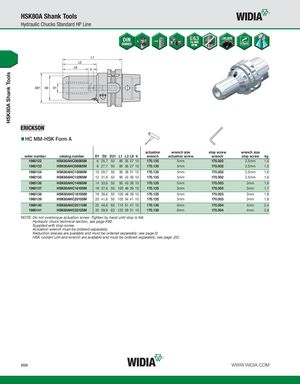

Каталог Widia инструментальная оснастка - страница 454
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
HC MM-HSK Form A
| actuation | wrench size | stop screw | wrench size | |||||
| order number | catalog number | D1 D2 D21 L1 L2 L9 V | wrench | actuation screw | wrench | stop screw | kg | |
| 1960122 | HSK80AHC06085M | 6 25,7 50 | 85 35 27 10 | 170.135 | 5mm | 170.002 | 2,5mm | 1,5 |
| 1960133 | HSK80AHC08085M | 8 27,7 50 | 85 36 27 10 | 170.135 | 5mm | 170.002 | 2,5mm | 1,5 |
| 1960134 | HSK80AHC10090M | 10 29,7 50 | 90 38 31 10 | 170.135 | 5mm | 170.002 | 2,5mm | 1,6 |
| 1960135 | HSK80AHC12095M | 12 31,6 50 | 95 43 36 10 | 170.135 | 5mm | 170.002 | 2,5mm | 1,6 |
| 1960136 | HSK80AHC14095M | 14 33,6 50 | 95 43 36 10 | 170.135 | 5mm | 170.003 | 3mm | 1,6 |
| 1960137 | HSK80AHC16100M | 16 37,6 50 100 46 39 10 | 170.135 | 5mm | 170.003 | 3mm | 1,7 | |
| 1960138 | HSK80AHC18100M | 18 39,6 50 100 48 39 10 | 170.135 | 5mm | 170.003 | 3mm | 1,8 | |
| 1960139 | HSK80AHC20105M | 20 41,6 50 105 54 41 10 | 170.135 | 5mm | 170.003 | 3mm | 1,8 | |
| 1960140 | HSK80AHC25115M | 25 49,8 63 115 51 47 10 | 170.136 | 6mm | 170.004 | 4mm | 2,4 | |
| 1960141 | HSK80AHC32125M | 32 59,8 63 125 59 51 10 | 170.136 | 6mm | 170.004 | 4mm | 2,8 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrench must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
