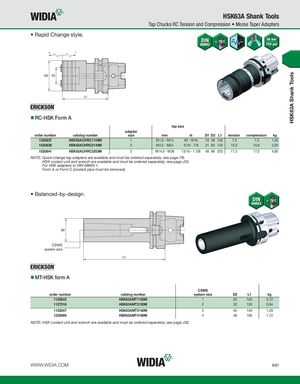

HSK63A Shank Tools HSK63A Shank Tools Tap Chucks RC Tension and Compression • Morse Taper Adapters • Rapid Change style. RC-HSK Form A tap size adapter order number catalog number size mm in D1 D2 L1 tension compression kg 1520637 HSK63ACHRC1105M 1 M1.0 - M14 #0 - 9/16 19 39 105 7,5 7,5 1,30 1520639 HSK63ACHRC2140M 2 M4.5 - M24 5/16 - 7/8 31 60 140 10,0 10,0 2,20 1520641 HSK63ACHRC3203M 3 M14.0 - M36 13/16 - 1 3/8 48 86 203 17,5 17,5 4,90 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. HSK coolant unit and wrench are available and must be ordered separately; see page J32. For HSK adapters to DIN 69893-1. Form A or Form C (coolant pipe must be removed). • Balanced-by-design. CSWS system size MT-HSK form A CSWS order number catalog number system size D2 L1 kg 1125543 HSK63AMT1100M 1 25 100 0,72 1127318 HSK63AMT2120M 2 32 120 0,94 1152347 HSK63AMT3140M 3 40 140 1,29 1230360 HSK63AMT4160M 4 48 160 1,72 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B87
