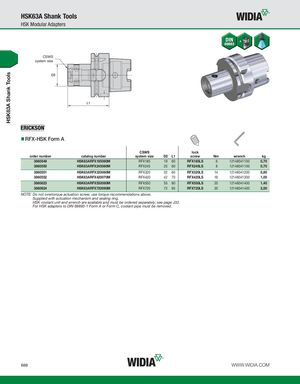

HSK63A Shank Tools HSK63A Shank Tools HSK Modular Adapters CSWS system size RFX-HSK Form A CSWS lock order number catalog number system size D2 L1 screw Nm wrench kg 3860549 HSK63ARFX185060M RFX185 19 60 RFX185LS 6 12148041100 0,70 3860550 HSK63ARFX245060M RFX245 25 60 RFX245LS 8 12148041100 0,70 3860551 HSK63ARFX320060M RFX320 32 60 RFX320LS 14 12148041200 0,80 3860552 HSK63ARFX420070M RFX420 42 70 RFX420LS 16 12148041300 1,00 3860623 HSK63ARFX550080M RFX550 55 80 RFX550LS 20 12148041400 1,40 3860624 HSK63ARFX720095M RFX720 72 95 RFX720LS 20 12148041400 2,00 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. HSK coolant unit and wrench are available and must be ordered separately; see page J32. For HSK adapters to DIN 69893-1 Form A or Form C, coolant pipe must be removed. B88 WWW.WIDIA.COM
