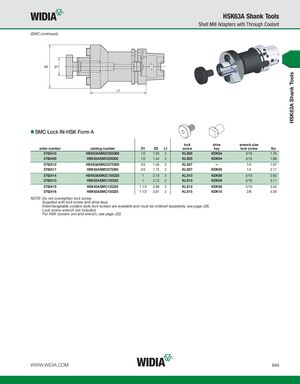

(SMC continued)
SMC Lock IN-HSK Form A
lock drive wrench size
| order number | catalog number | D1 | D2 | L1 | screw | key | lock screw | lbs | |
| 3762410 | HSK63ASM2C050200 | 1/2 | 1.20 | 2 | KLS05 | KDK04 | 3/16 | 1.76 | |
| 3762409 | HSK63ASMC050200 | 1/2 | 1.44 | 2 | KLS05 | KDK04 | 3/16 | 1.89 | |
| 3762412 | HSK63ASM2C075200 | 3/4 | 1.46 | 2 | KLS07 | — | 1/4 | 1.97 | |
| 3762411 | HSK63ASMC075200 | 3/4 | 1.75 | 2 | KLS07 | KDK05 | 1/4 | 2.17 | |
| 3762414 | HSK63ASM2C100225 | 1 | 2.19 | 2 | KLS10 | KDK06 | 5/16 | 2.83 | |
| 3762413 | HSK63ASMC100225 | 1 | 2.75 | 2 | KLS10 | KDK06 | 5/16 | 3.11 | |
| 3762415 | HSK63ASMC125225 | 1 1/4 | 2.88 | 2 | KLS12 | KDK08 | 5/16 | 3.40 | |
| 3762416 | HSK63ASMC150225 | 1 1/2 | 3.81 | 2 | KLS15 | KDK10 | 3/8 | 4.59 |
NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately, see page J26. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32.
