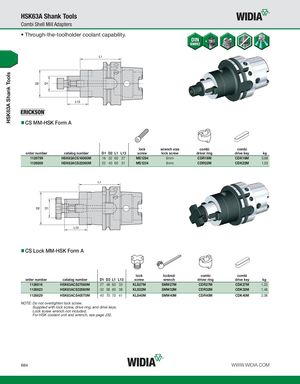

Каталог Widia инструментальная оснастка - страница 440
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
- Through-the-toolholder coolant capability.
CS MM-HSK Form A
| lock | wrench size | combi | combi | ||||||
| order number | catalog number | D1 D2 L1 L13 | screw | lock screw | driver ring | drive key | kg | ||
| 1126799 | HSK63ACS16060M | 16 32 60 27 | MS1294 | 6mm | CDR16M | CDK16M | 0,88 | ||
| 1126808 | HSK63ACS22060M | 22 40 60 31 | MS1234 | 8mm | CDR22M | CDK22M | 1,03 |
CS Lock MM-HSK Form A
| lock | locknut | combi | combi | |||||
| order number | catalog number | D1 D2 L1 L13 | screw | wrench | driver ring | drive key | kg | |
| 1126816 | HSK63ACS27060M | 27 48 60 33 | KLS27M | SMW27M | CDR27M | CDK27M | 1,23 | |
| 1126823 | HSK63ACS32060M | 32 58 60 38 | KLS32M | SMW32M | CDR32M | CDK32M | 1,48 | |
| 1126829 | HSK63ACS40070M | 40 70 70 41 | KLS40M | SMW40M | CDR40M | CDK40M | 2,08 |
NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and drive keys. Lock screw wrench not included. For HSK coolant unit and wrench, see page J32.
