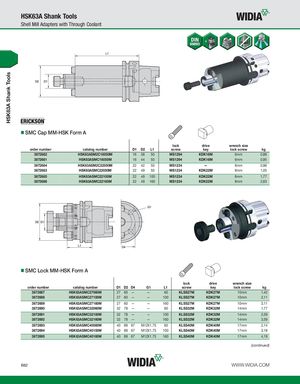

HSK63A Shank Tools HSK63A Shank Tools Shell Mill Adapters with Through Coolant SMC Cap MM-HSK Form A lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 3872682 HSK63ASM2C16050M 16 38 50 MS1294 KDK16M 6mm 0,88 3872681 HSK63ASMC16050M 16 44 50 MS1294 KDK16M 6mm 0,95 3872684 HSK63ASM2C22050M 22 42 50 MS1234 — 8mm 0,96 3872683 HSK63ASMC22050M 22 49 50 MS1234 KDK22M 8mm 1,05 3872685 HSK63ASMC22100M 22 49 100 MS1234 KDK22M 8mm 1,77 3872686 HSK63ASMC22160M 22 49 160 MS1234 KDK22M 8mm 2,63 SMC Lock MM-HSK Form A lock drive wrench size order number catalog number D1 D2 D4 G1 L1 screw key lock screw kg 3872687 HSK63ASMC27060M 27 60 — — 60 KLSS27M KDK27M 10mm 1,42 3872688 HSK63ASMC27100M 27 60 — — 100 KLSS27M KDK27M 10mm 2,11 3872689 HSK63ASMC27160M 27 60 — — 160 KLSS27M KDK27M 10mm 3,11 3872690 HSK63ASMC32060M 32 78 — — 60 KLSS32M KDK32M 14mm 1,77 3872691 HSK63ASMC32100M 32 78 — — 100 KLSS32M KDK32M 14mm 2,59 3872692 HSK63ASMC32160M 32 78 — — 160 KLSS32M KDK32M 14mm 3,59 3872693 HSK63ASMC40060M 40 89 67 M12X1.75 60 KLSS40M KDK40M 17mm 2,14 3872694 HSK63ASMC40100M 40 89 67 M12X1.75 100 KLSS40M KDK40M 17mm 3,18 3872695 HSK63ASMC40160M 40 89 67 M12X1.75 160 KLSS40M KDK40M 17mm 4,19 (continued) B82 WWW.WIDIA.COM
