DC-HSK Form A

D1 D1 max

order number		catalog number	mm	in	mm	in	D2	L1	L1S
	2636451	HSK63ADC13117M	0,5	.020	13,0	.512	50	126	117
	2636452	HSK63ADC16117M	3,0	.118	16,0	.630	52	127	117

NOTE: Tighten to the recommended tightening torque. 4mm locking wrench must be ordered separately; order number 170.304. HSK coolant unit and wrench are available and must be ordered separately; see page J32.

WN MM-HSK Form A

						wrench size lock		stop	wrench size
order number	catalog number	D1 D2 L1 L9 V				clamp screw screw	Nm	screw	stop screw	kg
1126142	HSK63AWN06080M	6 25	80 30 10		SS03M012	3mm	7	571.060	2,5mm	0,82
1126151	HSK63AWN08080M	8 28	80 30 10		SS03M014	4mm	15	571.067	3mm	0,86
1126161	HSK63AWN10080M	10 35	80 35	7	SS03M018	5mm	25	571.068	4mm	1,00
1126168	HSK63AWN12090M	12 42	90 40	7	SS03M023	6mm	35	571.074	5mm	1,23
1126178	HSK63AWN14090M	14 44	90 40	8	SS03M023	6mm	35	571.074	5mm	1,28
1126187	HSK63AWN16100M	16 48 100 43 10			SS03M025	6mm	50	571.069	6mm	1,53
1130396	HSK63AWN18100M	18 50 100 43 10			SS03M025	6mm	50	571.069	6mm	1,59
1126205	HSK63AWN20100M	20 52 100 45		8	SS03M026	8mm	95	571.076	6mm	1,65
1126220	HSK63AWN25110M	25 65 110 50		9	SS03M027	10mm	135	571.077	6mm	2,31
1126230	HSK63AWN32110M	32 72 110 54		9	SS03M029	10mm	160	571.077	6mm	2,55

NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw and stop screw. Clamp screw or stop screw wrenches not included.

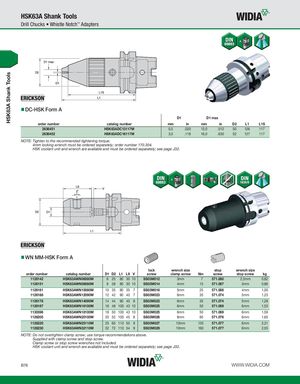

Каталог Widia инструментальная оснастка - страница 432
