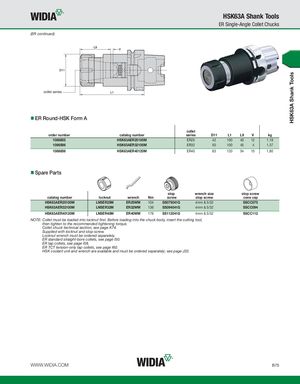

(ER continued)
collet series
ER Round-HSK Form A
collet
| order number | catalog number | series | D11 | L1 | L9 | V | kg | |
| 1086855 | HSK63AER25100M | ER25 | 42 | 100 | 40 | 12 | 1,18 | |
| 1086566 | HSK63AER32100M | ER32 | 50 | 100 | 45 | 4 | 1,37 | |
| 1086856 | HSK63AER40120M | ER40 | 63 | 120 | 54 | 15 | 1,80 |
Spare Parts
| stop | wrench size | stop screw | |||||
| catalog number | locknut | wrench | Nm | screw | stop screw | cone cap | |
| HSK63AER25100M | LNSER25M | ER25WM | 104 | SS075041G | 4mm & 5/32 | SSCC075 | |
| HSK63AER32100M | LNSER32M | ER32WM | 136 | SS094041G | 4mm & 5/32 | SSCC094 | |
| HSK63AER40120M | LNSER40M | ER40WM | 176 | SS112041G | 4mm & 5/32 | SSCC112 |
NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
