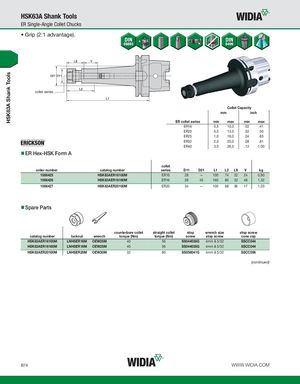

Каталог Widia инструментальная оснастка - страница 430
Навигация
Каталог Widia достижения 2021
Брошюра Widia решения для аэрокосмической промышленности
Брошюра Widia техническое руководство
Каталог Widia токарный инструмент 2020
Каталог Widia цельные концевые фрезы
Каталог Widia техническое руководство по разверткам
- Grip (2:1 advantage).
collet series
Collet Capacity mm inch
| ER collet series | min | max | min | max |
| ER16 | 0,5 | 10,0 | .02 | .41 |
| ER20 | 0,5 | 13,0 | .02 | .50 |
| ER25 | 1,0 | 16,0 | .04 | .63 |
| ER32 | 2,0 | 20,0 | .08 | .81 |
| ER40 | 3,0 | 26,0 | .12 | 1.00 |
ER Hex-HSK Form A
collet
| order number | catalog number | series | D11 | D21 | L1 | L2 | L9 | V | kg | |
| 1086425 | HSK63AER16100M | ER16 | 28 | — | 100 | 74 | 32 | 24 | 0,90 | |
| 1086426 | HSK63AER16160M | ER16 | 28 | 45 | 160 | 85 | 32 | 48 | 1,32 | |
| 1086427 | HSK63AER20100M | ER20 | 34 | — | 100 | 68 | 36 | 17 | 1,03 |
Spare Parts
| counterbore collet | straight collet | stop | wrench size | stop screw | ||||||||
| catalog number | locknut | wrench | torque (Nm) | torque (Nm) | screw | stop screw | cone cap | |||||
| HSK63AER16100M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 | SSCC044 | |||||
| HSK63AER16160M | LNHSER16M | OEW25M | 40 | 56 | SS044038G | 4mm & 5/32 | SSCC044 | |||||
| HSK63AER20100M | LNHSER20M | OEW30M | 32 | 80 | SS056041G | 4mm & 5/32 | SSCC056 |
(continued)
