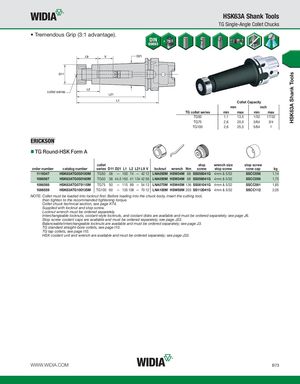

- Tremendous Grip (3:1 advantage).
collet series
Collet Capacity mm inch
| TG collet series | min | max | min | max | |
| TG50 | 1,1 | 13,5 | 1/32 | 17/32 | |
| TG75 | 2,6 | 20,0 | 3/64 | 3/4 | |
| TG100 | 2,6 | 25,5 | 5/64 | 1 |
TG Round-HSK Form A
| collet | stop | wrench size | stop screw | |||||||
| order number | catalog number | series D11 D21 L1 L2 L21 L9 V | locknut | wrench Nm | screw | stop screw | cone cap | kg | ||
| 1119347 | HSK63ATG050100M | TG50 | 38 | — 100 74 — 42 12 | LNA050M HSW34M | 68 SS056041G | 4mm & 5/32 | SSCC056 | 1,14 | |
| 1086567 | HSK63ATG050160M | TG50 | 38 44,5 160 41 134 42 58 | LNA050M HSW34M | 68 SS056041G | 4mm & 5/32 | SSCC056 | 1,75 | ||
| 1086568 | HSK63ATG075115M | TG75 | 50 | — 115 89 — 54 13 | LNA075M HSW45M 136 SS081041G | 4mm & 5/32 | SSCC081 | 1,65 | ||
| 1086559 | HSK63ATG100135M | TG100 60 | — 135 109 — 70 12 | LNA100M HSW58M 203 SS112041G | 4mm & 5/32 | SSCC112 | 2,05 |
NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
