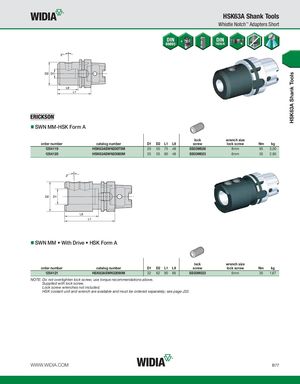

HSK63A Shank Tools HSK63A Shank Tools Whistle Notch™ Adapters Short SWN MM-HSK Form A lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 1254119 HSK63ASWN20075M 20 50 75 48 SS03M026 8mm 95 3,00 1254120 HSK63ASWN25080M 25 55 80 48 SS03M023 6mm 35 2,90 SWN MM • With Drive • HSK Form A lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 1254121 HSK63ASWN32090M 32 62 90 66 SS03M023 6mm 35 1,67 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrenches not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B77
