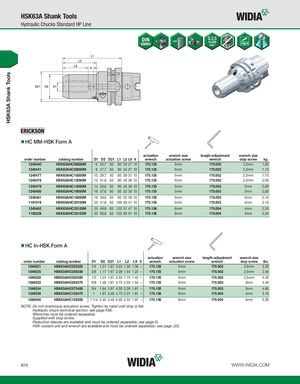

HC MM-HSK Form A
actuation wrench size length-adjustment wrench size
| order number | catalog number | D1 D2 D21 L1 L2 L9 V | wrench | actuation screw | wrench | stop screw | kg | |
| 1245440 | HSK63AHC06080M | 6 25,7 50 | 80 33 27 10 | 170.135 | 5mm | 170.002 | 2,5mm | 1,00 |
| 1245441 | HSK63AHC08080M | 8 27,7 50 | 80 34 27 10 | 170.135 | 5mm | 170.002 | 2,5mm | 1,10 |
| 1245477 | HSK63AHC10085M | 10 29,7 50 | 85 39 31 10 | 170.135 | 5mm | 170.002 | 2,5mm | 1,10 |
| 1245478 | HSK63AHC12090M | 12 31,6 50 | 90 45 36 10 | 170.135 | 5mm | 170.002 | 2,5mm | 2,00 |
| 1245479 | HSK63AHC14090M | 14 33,6 50 | 90 46 36 10 | 170.135 | 5mm | 170.003 | 3mm | 2,00 |
| 1245480 | HSK63AHC16095M | 16 37,6 50 | 95 52 39 10 | 170.135 | 5mm | 170.003 | 3mm | 2,00 |
| 1245481 | HSK63AHC18095M | 18 39,6 50 | 95 52 39 10 | 170.135 | 5mm | 170.003 | 3mm | 2,10 |
| 1191019 | HSK63AHC20100M | 20 41,6 50 100 58 41 10 | 170.135 | 5mm | 170.003 | 3mm | 2,10 | |
| 1245482 | HSK63AHC25120M | 25 49,8 63 120 51 47 10 | 170.136 | 6mm | 170.004 | 4mm | 2,30 | |
| 1192226 | HSK63AHC32125M | 32 59,8 63 125 59 51 10 | 170.136 | 6mm | 170.004 | 4mm | 2,26 |
HC In-HSK Form A
actuation wrench size length-adjustment wrench size
| order number | catalog number | D1 | D2 D21 L1 | L9 V L2 wrench | actuation screw | wrench | stop screw | lbs |
| 1246521 | HSK63AHC025325 | 1/4 1.01 1.97 3.25 1.30 1.06 – | 170.135 | 5mm | 170.002 | 2,5mm | 2.20 | |
| 1246525 | HSK63AHC038338 | 3/8 1.17 1.97 3.38 1.54 1.22 – | 170.135 | 5mm | 170.002 | 2,5mm | 2.40 | |
| 1246528 | HSK63AHC050350 | 1/2 1.24 1.97 3.50 1.75 1.42 – | 170.135 | 5mm | 170.002 | 2,5mm | 4.40 | |
| 1246532 | HSK63AHC062375 | 5/8 1.48 1.97 3.75 2.03 1.54 – | 170.135 | 5mm | 170.003 | 3mm | 4.40 | |
| 1246534 | HSK63AHC075400 | 3/4 1.64 1.97 4.00 2.28 1.61 – | 170.135 | 5mm | 170.003 | 3mm | 4.60 | |
| 1246536 | HSK63AHC100475 | 1 | 1.97 2.48 4.75 2.01 1.81 – | 170.136 | 6mm | 170.004 | 4mm | 5.10 |
| 1246540 | HSK63AHC125500 | 1 1/4 2.35 2.48 5.00 2.32 1.97 – | 170.136 | 6mm | 170.004 | 4mm | 5.30 |
NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Wrenches must be ordered separately. Supplied with stop screw. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32.
