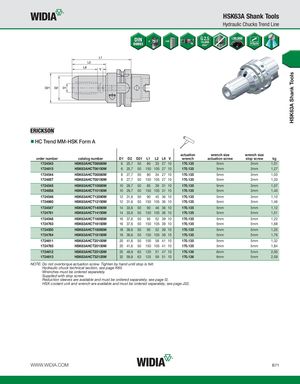

HSK63A Shank Tools HSK63A Shank Tools Hydraulic Chucks Trend Line HC Trend MM-HSK Form A actuation wrench size wrench size order number catalog number D1 D2 D21 L1 L2 L9 V wrench actuation screw stop screw kg 1724543 HSK63AHCT06080M 6 25,7 50 80 33 27 10 170.135 5mm 3mm 1,01 1724615 HSK63AHCT06150M 6 25,7 50 150 105 27 10 170.135 5mm 3mm 1,27 1724544 HSK63AHCT08080M 8 27,7 50 80 34 27 10 170.135 5mm 3mm 1,03 1724657 HSK63AHCT08150M 8 27,7 50 150 105 27 10 170.135 5mm 3mm 1,33 1724545 HSK63AHCT10085M 10 29,7 50 85 39 31 10 170.135 5mm 3mm 1,07 1724658 HSK63AHCT10150M 10 29,7 50 150 105 31 10 170.135 5mm 3mm 1,40 1724546 HSK63AHCT12090M 12 31,6 50 90 45 36 10 170.135 5mm 3mm 1,10 1724660 HSK63AHCT12150M 12 31,6 50 150 105 36 10 170.135 5mm 3mm 1,46 1724547 HSK63AHCT14090M 14 33,6 50 90 46 36 10 170.135 5mm 5mm 1,12 1724761 HSK63AHCT14150M 14 33,6 50 150 105 36 10 170.135 5mm 5mm 1,51 1724548 HSK63AHCT16095M 16 37,6 50 95 52 39 10 170.135 5mm 5mm 1,22 1724763 HSK63AHCT16150M 16 37,6 50 150 105 39 10 170.135 5mm 5mm 1,68 1724550 HSK63AHCT18095M 18 39,6 50 95 52 39 10 170.135 5mm 5mm 1,25 1724764 HSK63AHCT18150M 18 39,6 50 150 105 39 10 170.135 5mm 5mm 1,76 1724611 HSK63AHCT20100M 20 41,6 50 100 58 41 10 170.135 5mm 5mm 1,32 1724765 HSK63AHCT20150M 20 41,6 50 150 105 41 10 170.135 5mm 5mm 1,84 1724612 HSK63AHCT25120M 25 49,8 63 120 51 47 10 170.136 6mm 5mm 2,00 1724613 HSK63AHCT32125M 32 59,8 63 125 59 51 10 170.136 6mm 5mm 2,59 NOTE: Do not overtorque actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Wrenches must be ordered separately. Supplied with stop screw. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B71
