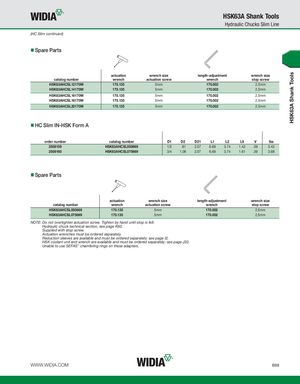

(HC Slim continued)
Spare Parts
| actuation | wrench size | length-adjustment | wrench size | ||
| catalog number wrench | actuation screw | wrench | stop screw | ||
| HSK63AHCSL12170M | 170.135 | 5mm | 170.002 | 2,5mm | |
| HSK63AHCSL14170M | 170.135 | 5mm | 170.002 | 2,5mm | |
| HSK63AHCSL16170M | 170.135 | 5mm | 170.002 | 2,5mm | |
| HSK63AHCSL18170M | 170.135 | 5mm | 170.002 | 2,5mm | |
| HSK63AHCSL20170M | 170.135 | 5mm | 170.002 | 2,5mm |
HC Slim IN-HSK Form A
| order number | catalog number | D1 | D2 | D21 | L1 | L2 | L9 | V | lbs | |
| 2508159 | HSK63AHCSL050669 | 1/2 | .81 | 2.07 | 6.69 | 3.74 | 1.42 | .39 | 3.42 | |
| 2508160 | HSK63AHCSL075669 | 3/4 | 1.06 | 2.07 | 6.69 | 3.74 | 1.61 | .39 | 3.68 |
Spare Parts
| actuation | wrench size | length-adjustment | wrench size | |||||
| catalog number | wrench | actuation screw | wrench | stop screw | ||||
| HSK63AHCSL050669 | 170.135 | 5mm | 170.002 | 2,5mm | ||||
| HSK63AHCSL075669 | 170.135 | 5mm | 170.002 | 2,5mm |
NOTE: Do not overtighten actuation screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Supplied with stop screw. Actuation wrenches must be ordered separately. Reduction sleeves are available and must be ordered separately; see page I2. HSK coolant unit and wrench are available and must be ordered separately; see page J32. Unable to use SEFAS™ chamfering rings on these adapters.
