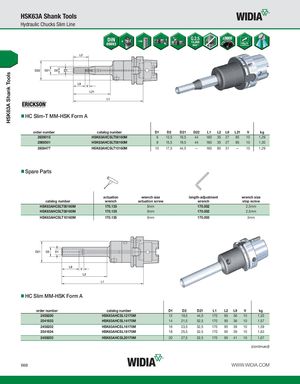

HC Slim-T MM-HSK Form A
| order number | catalog number | D1 | D2 | D21 | D22 | L1 | L2 | L9 | L21 | V | kg | ||
| 2639015 | HSK63AHCSLT06160M | 6 | 13,5 | 19,5 | 44 | 160 | 35 | 27 | 85 | 10 | 1,29 | ||
| 2868501 | HSK63AHCSLT08160M | 8 | 15,5 | 19,5 | 44 | 160 | 35 | 27 | 85 | 10 | 1,30 | ||
| 2638477 | HSK63AHCSLT10160M | 10 | 17,5 | 44,5 | — | 160 | 85 | 31 | — | 10 | 1,29 |
Spare Parts
| actuation | wrench size | length-adjustment | wrench size | |||||
| catalog number | wrench | actuation screw | wrench | stop screw | ||||
| HSK63AHCSLT06160M | 170.135 | 5mm | 170.002 | 2,5mm | ||||
| HSK63AHCSLT08160M | 170.135 | 5mm | 170.002 | 2,5mm | ||||
| HSK63AHCSLT10160M | 170.135 | 5mm | 170.003 | 3mm |
HC Slim MM-HSK Form A
| order number | catalog number D1 | D2 | D21 | L1 | L2 | L9 | V | kg | |
| 2458200 | HSK63AHCSL12170M | 12 | 19,5 | 44,5 | 170 | 95 | 36 | 10 | 1,33 |
| 2541833 | HSK63AHCSL14170M | 14 | 21,5 | 52,5 | 170 | 95 | 36 | 10 | 1,57 |
| 2458202 | HSK63AHCSL16170M | 16 | 23,5 | 52,5 | 170 | 95 | 39 | 10 | 1,59 |
| 2541834 | HSK63AHCSL18170M | 18 | 25,5 | 52,5 | 170 | 95 | 39 | 10 | 1,63 |
| 2458203 | HSK63AHCSL20170M | 20 | 27,5 | 52,5 | 170 | 95 | 41 | 10 | 1,67 |
(continued)
