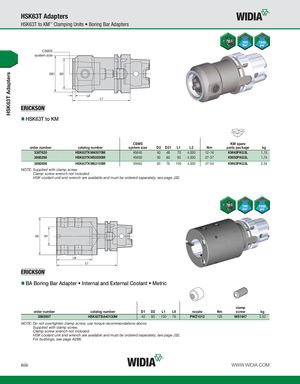

HSK63T Adapters HSK63T Adapters HSK63T to KM™ Clamping Units • Boring Bar Adapters CSWS system size HSK63T to KM CSWS KM spare order number catalog number system size D2 D21 L1 L2 Nm parts package kg 3387620 HSK63TKM40070M KM40 40 48 70 4,000 12-16 KM40PKG3L 1,13 3895298 HSK63TKM50095M KM50 50 60 95 4,000 27-37 KM50PKG3L 1,74 3892899 HSK63TKM63105M KM63 63 76 105 4,000 47-54 KM63PKG3L 2,54 NOTE: Supplied with clamp screw. Clamp screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. BA Boring Bar Adapter • Internal and External Coolant • Metric clamp order number catalog number D1 D2 L1 L9 nozzle Nm screw kg 3892897 HSK63TBA40130M 40 80 130 76 PWZ1012 125 MS1947 3,52 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. For bushings, see page A286. B58 WWW.WIDIA.COM
