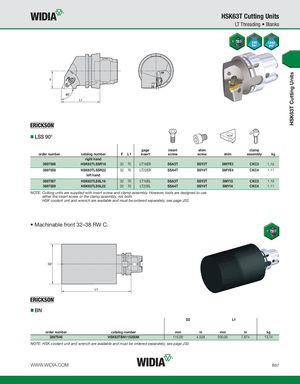

HSK63T Cutting Units HSK63T Cutting Units LT Threading • Blanks LSS 90° gage insert shim clamp order number catalog number F L1 insert screw screw shim assembly kg right hand 3897556 HSK63TLSSR16 32 70 LT16ER SSA3T SSY3T SMYE3 CKC3 1,12 3897558 HSK63TLSSR22 32 70 LT22ER SSA4T SSY4T SMYE4 CKC4 1,11 left hand 3897557 HSK63TLSSL16 32 70 LT16EL SSA3T SSY3T SMYI3 CKC3 1,12 3897559 HSK63TLSSL22 32 70 LT22EL SSA4T SSY4T SMYI4 CKC4 1,11 NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both. HSK coolant unit and wrench are available and must be ordered separately; see page J32. • Machinable front 32–38 RW C. BN D2 L1 order number catalog number mm in mm in kg 3897546 HSK63TBN115200M 115,00 4.528 200,00 7.874 13,74 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B57
