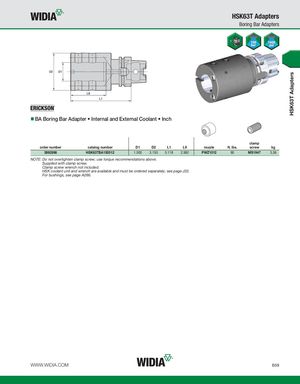

HSK63T Adapters
Boring Bar Adapters
HSK63T Adapters
BA Boring Bar Adapter • Internal and External Coolant • Inch
clamp
order number catalog number D1 D2 L1 L9 nozzle ft. lbs. screw kg
3892898 HSK63TBA150512 1.500 3.150 5.118 2.992 PWZ1012 90 MS1947 3,58
NOTE: Do not overtighten clamp screw; use torque recommendations above.
Supplied with clamp screw.
Clamp screw wrench not included.
HSK coolant unit and wrench are available and must be ordered separately; see page J32.
For bushings, see page A286.
WWW.WIDIA.COM B59
