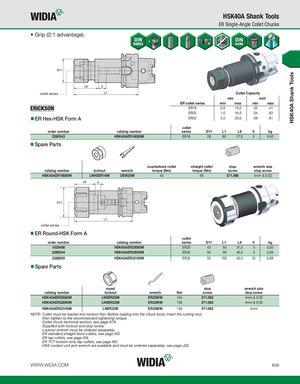

HSK40A Shank Tools HSK40A Shank Tools ER Single-Angle Collet Chucks • Grip (2:1 advantage). collet series Collet Capacity mm inch ER collet series min max min max ER16 0,5 10,0 .02 .41 ER25 1,0 16,0 .04 .63 ER Hex-HSK Form A ER32 2,0 20,0 .08 .81 collet order number catalog number series D11 L1 L9 V kg 2260343 HSK40AER16080M ER16 28 80 27,0 5 0,40 Spare Parts counterbore collet straight collet stop wrench size catalog number locknut wrench torque (Nm) torque (Nm) screw stop screw HSK40AER16080M LNHSER16M OEW25M 40 56 571.068 4mm & 5/32 collet series ER Round-HSK Form A collet order number catalog number series D11 L1 L9 V kg 1833498 HSK40AER25080M ER25 42 80 31,0 5 0,50 2260344 HSK40AER32090M ER32 50 90 46,0 5 0,56 2386935 HSK40AER32100M ER32 50 100 40,0 10 0,69 Spare Parts round stop wrench size catalog number locknut wrench Nm screw stop screw HSK40AER25080M LNSER25M ER25WM 104 571.062 4mm & 5/32 HSK40AER32090M LNSER32M ER32WM 136 571.062 4mm & 5/32 HSK40AER32100M LNER32M ER32WM 136 571.062 4mm NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. ER standard straight-bore collets, see page I50. ER tap collets, see page I58. ER TCT tension-only tap collets, see page I60. HSK coolant unit and wrench are available and must be ordered separately; see page J32. WWW.WIDIA.COM B35
