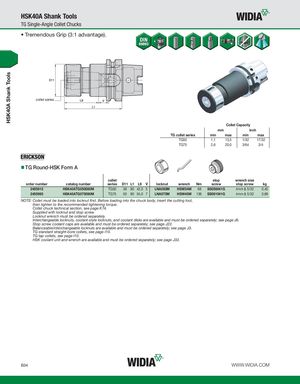

HSK40A Shank Tools HSK40A Shank Tools TG Single-Angle Collet Chucks • Tremendous Grip (3:1 advantage). collet series Collet Capacity mm inch TG collet series min max min max TG50 1,1 13,5 1/32 17/32 TG75 2,6 20,0 3/64 3/4 TG Round-HSK Form A collet stop wrench size order number catalog number series D11 L1 L9 V locknut wrench Nm screw stop screw kg 2455912 HSK40ATG050080M TG50 38 80 42,0 5 LNA050M HSW34M 68 SS056041G 4mm & 5/32 0,45 2455993 HSK40ATG075090M TG75 50 90 54,0 7 LNA075M HSW45M 136 SS081041G 4mm & 5/32 0,69 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B34 WWW.WIDIA.COM
