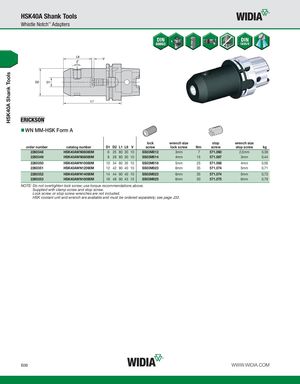

HSK40A Shank Tools HSK40A Shank Tools Whistle Notch™ Adapters WN MM-HSK Form A lock wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw lock screw Nm screw stop screw kg 2260348 HSK40AWN06080M 6 25 80 30 10 SS03M012 3mm 7 571.060 2,5mm 0,39 2260349 HSK40AWN08080M 8 28 80 30 10 SS03M014 4mm 15 571.067 3mm 0,44 2260350 HSK40AWN10080M 10 34 80 35 10 SS03M018 5mm 25 571.068 4mm 0,56 2260351 HSK40AWN12090M 12 42 90 40 10 SS03M023 6mm 35 571.074 5mm 0,71 2260352 HSK40AWN14090M 14 44 90 40 10 SS03M023 6mm 35 571.074 5mm 0,73 2260353 HSK40AWN16090M 16 48 90 43 10 SS03M025 6mm 50 571.075 6mm 0,79 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with clamp screw and stop screw. Lock screw or stop screw wrenches are not included. HSK coolant unit and wrench are available and must be ordered separately; see page J32. B36 WWW.WIDIA.COM
