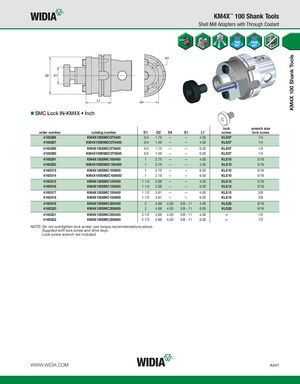

KM4X 100 Shank Tools KM4X™ 100 Shank Tools Shell Mill Adapters with Through Coolant SMC Lock IN-KM4X • Inch lock wrench size order number catalog number D1 D2 D4 G1 L1 screw lock screw 4160286 KM4X100SMC075400 3/4 1.75 — — 4.00 KLS07 1/4 4160287 KM4X100SM2C075400 3/4 1.46 — — 4.00 KLS07 1/4 4160289 KM4X100SMC075600 3/4 1.75 — — 6.00 KLS07 1/4 4160290 KM4X100SM2C075600 3/4 1.46 — — 6.00 KLS07 1/4 4160291 KM4X100SMC100400 1 2.75 — — 4.00 KLS10 5/16 4160292 KM4X100SM2C100400 1 2.19 — — 4.00 KLS10 5/16 4160313 KM4X100SMC100600 1 2.75 — — 6.00 KLS10 5/16 4160314 KM4X100SM2C100600 1 2.19 — — 6.00 KLS10 5/16 4160315 KM4X100SMC125400 1 1/4 2.88 — — 4.00 KLS12 5/16 4160316 KM4X100SMC125600 1 1/4 2.88 — — 6.00 KLS12 5/16 4160317 KM4X100SMC150400 1 1/2 3.81 — — 4.00 KLS15 3/8 4160318 KM4X100SMC150600 1 1/2 3.81 — — 6.00 KLS15 3/8 4160319 KM4X100SMC200400 2 4.88 4.00 5/8 - 11 4.00 KLS20 9/16 4160320 KM4X100SMC200600 2 4.88 4.00 5/8 - 11 6.00 KLS20 9/16 4160321 KM4X100SMC250400 2 1/2 4.88 4.00 5/8 - 11 4.00 — 1/2 4160322 KM4X100SMC250600 2 1/2 4.88 4.00 5/8 - 11 6.00 — 1/2 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and drive keys. Lock screw wrench not included. WWW.WIDIA.COM A341
