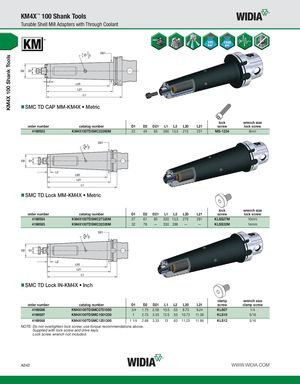

KM4X 100 Shank Tools KM4X™ 100 Shank Tools Tunable Shell Mill Adapters with Through Coolant SMC TD CAP MM-KM4X • Metric lock wrench size order number catalog number D1 D2 D21 L1 L2 L20 L21 screw lock screw 4169583 KM4X100TDSMC22260M 22 49 65 260 13,5 215 231 MS-1234 8mm SMC TD Lock MM-KM4X • Metric lock wrench size order number catalog number D1 D2 D21 L1 L2 L20 L21 screw lock screw 4169584 KM4X100TDSMC27320M 27 61 85 320 13,5 275 291 KLSS27M 10mm 4169585 KM4X100TDSMC32330M 32 78 — 330 299 — — KLSS32M 14mm SMC TD Lock IN-KM4X • Inch clamp wrench size order number catalog number D1 D2 D21 L1 L2 L20 L21 screw clamp screw 4169586 KM4X100TDSMC0751050 3/4 1.75 2.56 10.5 .53 8.73 9.24 KLS07 1/4 4169587 KM4X100TDSMC1001250 1 2.75 3.33 12.5 .53 10.73 11.36 KLS10 5/16 4169588 KM4X100TDSMC1251300 1 1/4 2.88 3.33 13 .63 11.23 11.86 KLS12 5/16 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and drive keys. Lock screw wrench not included. A342 WWW.WIDIA.COM
