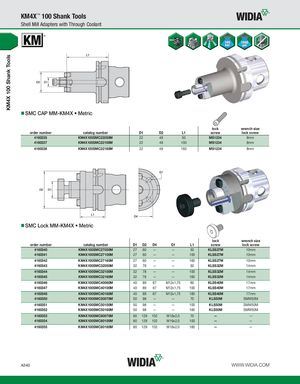

KM4X 100 Shank Tools KM4X™ 100 Shank Tools Shell Mill Adapters with Through Coolant SMC CAP MM-KM4X • Metric lock wrench size order number catalog number D1 D2 L1 screw lock screw 4160335 KM4X100SMC22050M 22 49 50 MS1234 8mm 4160337 KM4X100SMC22100M 22 49 100 MS1234 8mm 4160338 KM4X100SMC22160M 22 49 160 MS1234 8mm SMC Lock MM-KM4X • Metric lock wrench size order number catalog number D1 D2 D4 G1 L1 screw lock screw 4160340 KM4X100SMC27050M 27 60 — — 50 KLSS27M 10mm 4160341 KM4X100SMC27100M 27 60 — — 100 KLSS27M 10mm 4160342 KM4X100SMC27160M 27 60 — — 160 KLSS27M 10mm 4160343 KM4X100SMC32050M 32 78 — — 50 KLSS32M 14mm 4160344 KM4X100SMC32100M 32 78 — — 100 KLSS32M 14mm 4160345 KM4X100SMC32160M 32 78 — — 160 KLSS32M 14mm 4160346 KM4X100SMC40060M 40 89 67 M12x1,75 60 KLSS40M 17mm 4160347 KM4X100SMC40100M 40 89 67 M12x1,75 100 KLSS40M 17mm 4160348 KM4X100SMC40160M 40 89 67 M12x1,75 160 KLSS40M 17mm 4160350 KM4X100SMC50070M 50 98 — — 70 KLS50M SMW50M 4160351 KM4X100SMC50100M 50 98 — — 100 KLS50M SMW50M 4160352 KM4X100SMC50160M 50 98 — — 160 KLS50M SMW50M 4160353 KM4X100SMC60070M 60 129 102 M16x2,0 70 — — 4160354 KM4X100SMC60100M 60 129 102 M16x2,0 100 — — 4160355 KM4X100SMC60160M 60 129 102 M16x2,0 160 — — A340 WWW.WIDIA.COM
