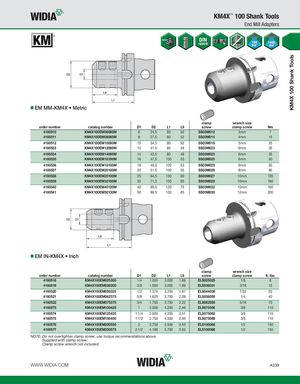

KM4X 100 Shank Tools KM4X™ 100 Shank Tools End Mill Adapters EM MM-KM4X • Metric clamp wrench size order number catalog number D1 D2 L1 L9 screw clamp screw Nm 4160510 KM4X100EM06080M 6 24,5 80 52 SS03M012 3mm 7 4160511 KM4X100EM08080M 8 27,5 80 52 SS03M014 4mm 15 4160512 KM4X100EM10080M 10 34,5 80 52 SS03M018 5mm 25 4160533 KM4X100EM12080M 12 41,5 80 49 SS03M023 6mm 35 4160534 KM4X100EM14080M 14 43,5 80 49 SS03M023 6mm 35 4160535 KM4X100EM16100M 16 47,5 100 53 SS03M025 6mm 50 4160536 KM4X100EM18100M 18 49,5 100 53 SS03M025 6mm 50 4160537 KM4X100EM20100M 20 51,5 100 55 SS03M026 8mm 95 4160538 KM4X100EM25100M 25 64,5 100 60 SS03M027 10mm 135 4160539 KM4X100EM32100M 32 71,5 100 65 SS03M029 10mm 160 4160540 KM4X100EM40120M 40 89,5 120 75 SS03M032 10mm 160 4160541 KM4X100EM50130M 50 99,5 130 85 SS03M030 12mm 200 EM IN-KM4X • Inch clamp wrench size order number catalog number D1 D2 L1 L9 screw clamp screw ft. lbs. 4160518 KM4X100EM025300 1/4 1.000 3.000 1.89 ELS025025 1/8 8 4160519 KM4X100EM038300 3/8 1.000 3.000 1.89 ELS038031 3/16 15 4160520 KM4X100EM050325 1/2 1.375 3.250 1.97 ELS044038 7/32 20 4160521 KM4X100EM062375 5/8 1.625 3.750 2.09 ELS056050 1/4 40 4160522 KM4X100EM075375 3/4 1.750 3.750 2.22 ELS062050 5/16 70 4160573 KM4X100EM100425 1 2.000 4.250 2.46 ELS075056 3/8 110 4160574 KM4X100EM125425 1 1/4 2.500 4.250 2.51 ELS075062 3/8 110 4160575 KM4X100EM150450 1 1/2 2.750 4.500 2.93 ELS075069 3/8 110 4160576 KM4X100EM200550 2 3.750 5.500 3.53 ELS100088 1/2 150 4160577 KM4X100EM250575 2 1/2 4.188 5.750 3.63 ELS100088 1/2 150 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. WWW.WIDIA.COM A339
