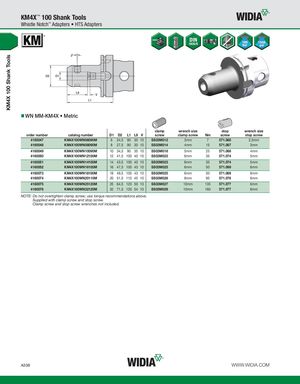

KM4X 100 Shank Tools KM4X™ 100 Shank Tools Whistle Notch™ Adapters • HTS Adapters WN MM-KM4X • Metric clamp wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw clamp screw Nm screw stop screw 4160047 KM4X100WN06090M 6 24,5 90 30 10 SS03M012 3mm 7 571.060 2,5mm 4160048 KM4X100WN08090M 8 27,5 90 30 10 SS03M014 4mm 15 571.067 3mm 4160049 KM4X100WN10090M 10 34,5 90 35 10 SS03M018 5mm 25 571.068 4mm 4160050 KM4X100WN12100M 12 41,5 100 40 10 SS03M023 6mm 35 571.074 5mm 4160051 KM4X100WN14100M 14 43,5 100 40 10 SS03M023 6mm 35 571.074 5mm 4160052 KM4X100WN16100M 16 47,5 100 43 10 SS03M025 6mm 50 571.069 6mm 4160073 KM4X100WN18100M 18 49,5 100 43 10 SS03M025 6mm 50 571.069 6mm 4160074 KM4X100WN20110M 20 51,5 110 45 10 SS03M026 8mm 95 571.076 6mm 4160075 KM4X100WN25120M 25 64,5 120 50 10 SS03M027 10mm 135 571.077 6mm 4160076 KM4X100WN32120M 32 71,5 120 54 10 SS03M029 10mm 160 571.077 6mm NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw and stop screw. Clamp screw and stop screw wrenches not included. A338 WWW.WIDIA.COM
