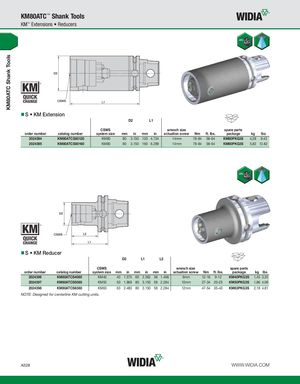

KM80ATC Shank Tools KM80ATC™ Shank Tools KM™ Extensions • Reducers S • KM Extension D2 L1 CSWS wrench size spare parts order number catalog number system size mm in mm in actuation screw Nm ft. lbs. package kg lbs 2024394 KM80ATCS80120 KM80 80 3.150 120 4.724 14mm 78-84 58-64 KM80PKG3S 4,28 9.43 2024395 KM80ATCS80160 KM80 80 3.150 160 6.299 14mm 78-84 58-64 KM80PKG3S 5,82 12.82 S • KM Reducer D2 L1 L2 CSWS wrench size spare parts order number catalog number system size mm in mm in mm in actuation screw Nm ft. lbs. package kg lbs 2024396 KM80ATCS4060 KM40 40 1.575 60 2.362 38 1.496 6mm 12-16 9-12 KM40PKG3S 1,45 3.20 2024397 KM80ATCS5080 KM50 50 1.969 80 3.150 58 2.284 10mm 27-34 20-25 KM50PKG3S 1,86 4.09 2024398 KM80ATCS6380 KM63 63 2.480 80 3.150 58 2.284 12mm 47-54 35-40 KM63PKG3S 2,18 4.81 NOTE: Designed for centerline KM cutting units. A328 WWW.WIDIA.COM
