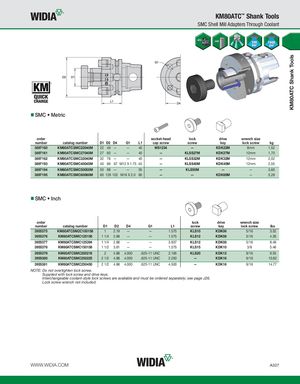

KM80ATC Shank Tools KM80ATC™ Shank Tools SMC Shell Mill Adapters Through Coolant SMC • Metric order socket-head lock drive wrench size number catalog number D1 D2 D4 G1 L1 cap screw screw key lock screw kg 3897160 KM80ATCSMC22040M 22 49 — — 40 MS1234 — KDK22M 8mm 1,52 3897161 KM80ATCSMC27040M 27 60 — — 40 — KLSS27M KDK27M 10mm 1,70 3897162 KM80ATCSMC32040M 32 78 — — 40 — KLSS32M KDK32M 12mm 2,02 3897193 KM80ATCSMC40045M 40 89 67 M12 X 1.75 45 — KLSS40M KDK40M 12mm 2,55 3897194 KM80ATCSMC50055M 50 98 — — 55 — KLS50M — — 3,60 3897195 KM80ATCSMC60060M 60 129 102 M16 X 2.0 60 — — KDK60M — 5,28 SMC • Inch order lock drive wrench size number catalog number D1 D2 D4 G1 L1 screw key lock screw lbs 3955375 KM80ATCSM2C100158 1 2.19 — — 1.575 KLS10 KDK06 5/16 3.52 3955376 KM80ATCSMC125158 1 1/4 2.88 — — 1.575 KLS12 KDK08 5/16 4.26 3955377 KM80ATCSMC125394 1 1/4 2.88 — — 3.937 KLS12 KDK08 5/16 8.49 3955378 KM80ATCSMC150158 1 1/2 3.81 — — 1.575 KLS15 KDK10 3/8 5.46 3955379 KM80ATCSMC200216 2 4.88 4.000 .625-11 UNC 2.165 KLS20 KDK12 9/16 9.55 3955380 KM80ATCSMC250225 2 1/2 4.88 4.000 .625-11 UNC 2.250 — KDK16 9/16 10.82 3955381 KM80ATCSMC250450 2 1/2 4.88 4.000 .625-11 UNC 4.500 — KDK16 9/16 14.77 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. WWW.WIDIA.COM A327
