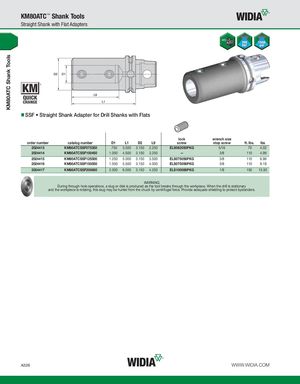

KM80ATC Shank Tools KM80ATC™ Shank Tools Straight Shank with Flat Adapters SSF • Straight Shank Adapter for Drill Shanks with Flats lock wrench size order number catalog number D1 L1 D2 L9 screw stop screw ft. lbs. lbs 2024413 KM80ATCSSF075350 .750 3.500 3.150 2.250 ELS062050PKG 5/16 70 4.02 2024414 KM80ATCSSF100450 1.000 4.500 3.150 3.250 — 3/8 110 4.99 2024415 KM80ATCSSF125500 1.250 5.000 3.150 3.500 ELS075056PKG 3/8 110 6.96 2024416 KM80ATCSSF150550 1.500 5.500 3.150 4.000 ELS075056PKG 3/8 110 8.18 2024417 KM80ATCSSF200650 2.000 6.500 3.150 4.250 ELS100088PKG 1/8 150 15.93 WARNING During through-hole operations, a slug or disk is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders. A326 WWW.WIDIA.COM
