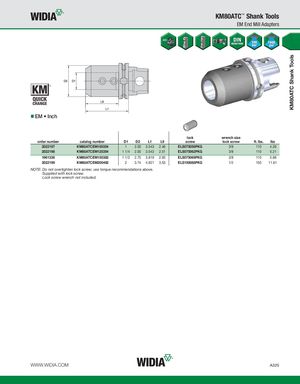

KM80ATC Shank Tools KM80ATC™ Shank Tools EM End Mill Adapters EM • Inch lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw ft. lbs. lbs 2022197 KM80ATCEM100354 1 2.00 3.543 2.46 ELS075056PKG 3/8 110 4.26 2022198 KM80ATCEM125354 1 1/4 2.50 3.543 2.51 ELS075062PKG 3/8 110 5.21 1961336 KM80ATCEM150382 1 1/2 2.75 3.819 2.93 ELS075069PKG 3/8 110 5.88 2022199 KM80ATCEM200492 2 3.74 4.921 3.53 ELS100088PKG 1/2 150 11.61 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. WWW.WIDIA.COM A325
