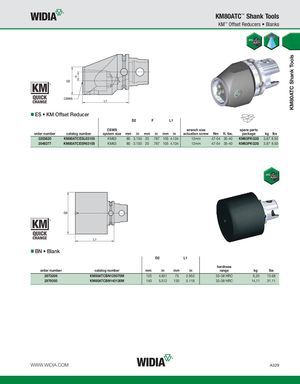

KM80ATC Shank Tools KM80ATC™ Shank Tools KM™ Offset Reducers • Blanks ES • KM Offset Reducer D2 F L1 CSWS wrench size spare parts order number catalog number system size mm in mm in mm in actuation screw Nm ft. lbs. package kg lbs 2203620 KM80ATCESL63105 KM63 80 3.150 20 .787 105 4.134 12mm 47-54 35-40 KM63PKG3S 3,87 8.50 2048377 KM80ATCESR63105 KM63 80 3.150 20 .787 105 4.134 12mm 47-54 35-40 KM63PKG3S 3,87 8.50 BN • Blank D2 L1 hardness order number catalog number mm in mm in range kg lbs 2873209 KM80ATCBN125075M 125 4.921 75 2.953 32–38 HRC 6,20 13.68 2879350 KM80ATCBN140130M 140 5.512 130 5.118 32–38 HRC 14,11 31.11 WWW.WIDIA.COM A329
