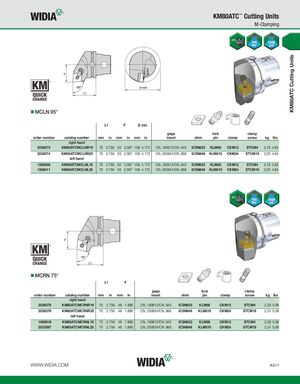

KM80ATC Cutting Units KM80ATC™ Cutting Units M-Clamping MCLN 95° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2036373 KM80ATCMCLNR19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,19 4.83 2036374 KM80ATCMCLNR25 70 2.756 53 2.087 106 4.173 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,20 4.84 left hand 1958408 KM80ATCMCLNL19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,19 4.83 1958411 KM80ATCMCLNL25 70 2.756 53 2.087 106 4.173 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,20 4.84 MCRN 75° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 2036375 KM80ATCMCRNR19 70 2.756 48 1.890 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,29 5.06 2036376 KM80ATCMCRNR25 70 2.756 48 1.890 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,31 5.09 left hand 1960916 KM80ATCMCRNL19 70 2.756 48 1.890 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,29 5.06 2033887 KM80ATCMCRNL25 70 2.756 48 1.890 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,31 5.09 WWW.WIDIA.COM A311
