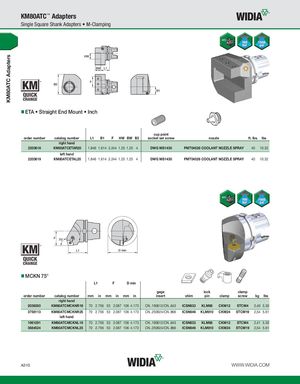

KM80ATC Adapters KM80ATC™ Adapters Single Square Shank Adapters • M-Clamping ETA • Straight End Mount • Inch cup point order number catalog number L1 B1 F HW BW B2 socket set screw nozzle ft. lbs. lbs right hand 2203618 KM80ATCETAR20 1.846 1.614 2.244 1.25 1.25 4 DWG MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.32 left hand 2203619 KM80ATCETAL20 1.846 1.614 2.244 1.25 1.25 4 DWG MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 10.32 MCKN 75° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2036393 KM80ATCMCKNR19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,40 5.30 3758113 KM80ATCMCKNR25 70 2.756 53 2.087 106 4.173 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,54 5.61 left hand 1961291 KM80ATCMCKNL19 70 2.756 53 2.087 106 4.173 CN..190612/CN..643 ICSN633 KLM68 CKM12 STCM4 2,41 5.30 3684524 KM80ATCMCKNL25 70 2.756 53 2.087 106 4.173 CN..250924/CN..866 ICSN846 KLM810 CKM24 STCM19 2,54 5.61 A310 WWW.WIDIA.COM
