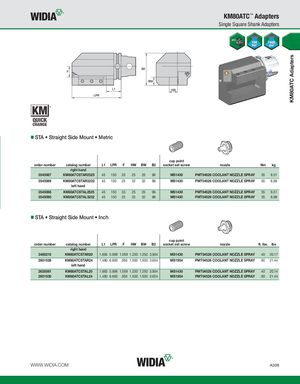

KM80ATC Adapters KM80ATC™ Adapters Single Square Shank Adapters STA • Straight Side Mount • Metric cup point order number catalog number L1 LPR F HW BW B2 socket set screw nozzle Nm kg right hand 3545087 KM80ATCSTAR2525 45 150 33 25 25 99 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 9,51 3545089 KM80ATCSTAR3232 45 150 25 32 32 98 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 8,98 left hand 3545088 KM80ATCSTAL2525 45 150 33 25 25 99 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 9,51 3545090 KM80ATCSTAL3232 45 150 25 32 32 98 MS1430 PMT04526 COOLANT NOZZLE SPRAY 55 8,98 STA • Straight Side Mount • Inch cup point order number catalog number L1 LPR F HW BW B2 socket set screw nozzle ft. lbs. lbs right hand 3480215 KM80ATCSTAR20 1.693 5.906 1.059 1.250 1.250 3.904 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 20.17 2601528 KM80ATCSTAR24 1.480 6.693 .559 1.500 1.500 3.654 MS1954 PMT04526 COOLANT NOZZLE SPRAY 90 21.44 left hand 2628561 KM80ATCSTAL20 1.693 5.906 1.059 1.250 1.250 3.904 MS1430 PMT04526 COOLANT NOZZLE SPRAY 40 20.14 2601530 KM80ATCSTAL24 1.480 6.693 .559 1.500 1.500 3.654 MS1954 PMT04526 COOLANT NOZZLE SPRAY 90 21.44 WWW.WIDIA.COM A309
