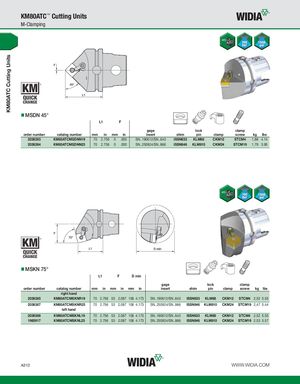

KM80ATC Cutting Units KM80ATC™ Cutting Units M-Clamping MSDN 45° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs 2036383 KM80ATCMSDNN19 70 2.756 0 .000 SN..190612/SN..643 ISSN633 KLM68 CKM12 STCM4 1,88 4.14 2036384 KM80ATCMSDNN25 70 2.756 0 .000 SN..250924/SN..866 ISSN846 KLM810 CKM24 STCM19 1,79 3.95 MSKN 75° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2036385 KM80ATCMSKNR19 70 2.756 53 2.087 106 4.173 SN..190612/SN..643 ISSN633 KLM68 CKM12 STCM4 2,52 5.55 2036387 KM80ATCMSKNR25 70 2.756 53 2.087 106 4.173 SN..250924/SN..866 ISSN846 KLM810 CKM24 STCM19 2,47 5.44 left hand 2036386 KM80ATCMSKNL19 70 2.756 53 2.087 106 4.173 SN..190612/SN..643 ISSN633 KLM68 CKM12 STCM4 2,52 5.55 1960917 KM80ATCMSKNL25 70 2.756 53 2.087 106 4.173 SN..250924/SN..866 ISSN846 KLM810 CKM24 STCM19 2,53 5.57 A312 WWW.WIDIA.COM
