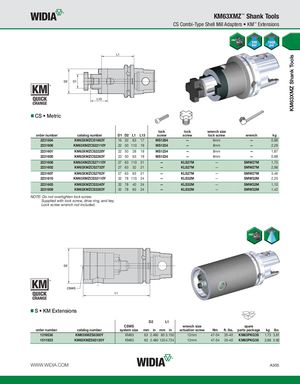

KM63XMZ Shank Tools KM63XMZ™ Shank Tools CS Combi-Type Shell Mill Adapters • KM™ Extensions CS • Metric lock lock wrench size order number catalog number D1 D2 L1 L13 screw screw lock screw wrench kg 2231604 KM63XMZCS1663Y 16 32 63 17 MS1294 — 6mm — 0,98 2231606 KM63XMZCS22110Y 22 50 110 19 MS1234 — 8mm — 2,29 2231601 KM63XMZCS2228Y 22 50 28 19 MS1234 — 8mm — 1,87 2231605 KM63XMZCS2263Y 22 50 63 19 MS1234 — 8mm — 0,88 2231608 KM63XMZCS27110Y 27 63 110 21 — KLS27M — SMW27M 1,70 2231602 KM63XMZCS2732Y 27 63 32 21 — KLS27M — SMW27M 2,98 2231607 KM63XMZCS2763Y 27 63 63 21 — KLS27M — SMW27M 3,46 2231610 KM63XMZCS32110Y 32 78 110 24 — KLS32M — SMW32M 2,20 2231603 KM63XMZCS3240Y 32 78 40 24 — KLS32M — SMW32M 1,10 2231609 KM63XMZCS3263Y 32 78 63 24 — KLS32M — SMW32M 1,42 NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and key. Lock screw wrench not included. S • KM Extensions D2 L1 CSWS wrench size spare order number catalog number system size mm in mm in actuation screw Nm ft. lbs. parts package kg lbs 1319536 KM63XMZS6380Y KM63 63 2.480 80 3.150 12mm 47-54 35-40 KM63PKG3S 1,73 3.81 1511923 KM63XMZS63120Y KM63 63 2.480 120 4.724 12mm 47-54 35-40 KM63PKG3S 2,68 5.92 WWW.WIDIA.COM A305
