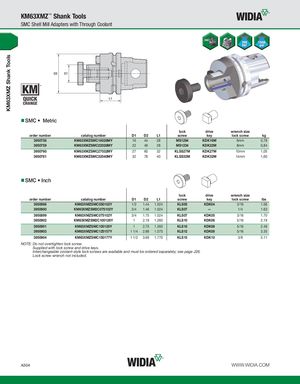

KM63XMZ Shank Tools KM63XMZ™ Shank Tools SMC Shell Mill Adapters with Through Coolant SMC • Metric lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 3950758 KM63XMZSMC16028MY 16 44 28 MS1294 KDK16M 6mm 0,78 3950759 KM63XMZSMC22028MY 22 49 28 MS1234 KDK22M 8mm 0,84 3950760 KM63XMZSMC27032MY 27 60 32 KLSS27M KDK27M 10mm 1,05 3950761 KM63XMZSMC32040MY 32 78 40 KLSS32M KDK32M 14mm 1,60 SMC • Inch lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw lbs 3950898 KM63XMZSMC050102Y 1/2 1.44 1.024 KLS05 KDK04 3/16 1.56 3950900 KM63XMZSM2C075102Y 3/4 1.46 1.024 KLS07 — 1/4 1.63 3950899 KM63XMZSMC075102Y 3/4 1.75 1.024 KLS07 KDK05 3/16 1.70 3950902 KM63XMZSM2C100126Y 1 2.19 1.260 KLS10 KDK06 5/16 2.19 3950901 KM63XMZSMC100126Y 1 2.75 1.260 KLS10 KDK06 5/16 2.49 3950903 KM63XMZSMC125157Y 1 1/4 2.88 1.575 KLS12 KDK08 5/16 3.35 3950904 KM63XMZSMC150177Y 1 1/2 3.69 1.770 KLS15 KDK10 3/8 5.11 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. A304 WWW.WIDIA.COM
