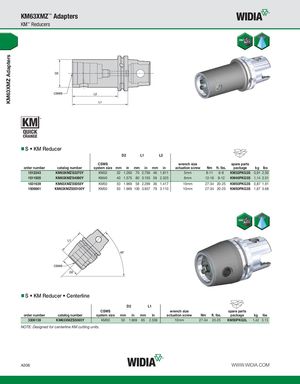

KM63XMZ Adapters KM63XMZ™ Adapters KM™ Reducers S • KM Reducer D2 L1 L2 CSWS wrench size spare parts order number catalog number system size mm in mm in mm in actuation screw Nm ft. lbs. package kg lbs 1512243 KM63XMZS3270Y KM32 32 1.260 70 2.756 46 1.811 5mm 8-11 6-8 KM32PKG3S 0,91 2.00 1511925 KM63XMZS4080Y KM40 40 1.575 80 3.150 59 2.323 6mm 12-16 9-12 KM40PKG3S 1,14 2.51 1831639 KM63XMZS5058Y KM50 50 1.969 58 2.299 36 1.417 10mm 27-34 20-25 KM50PKG3S 0,87 1.91 1509861 KM63XMZS50100Y KM50 50 1.969 100 3.937 79 3.110 10mm 27-34 20-25 KM50PKG3S 1,67 3.68 S • KM Reducer • Centerline D2 L1 CSWS wrench size spare parts order number catalog number system size mm in mm in actuation screw Nm ft. lbs. package kg lbs 3306139 KM63XMZS5065Y KM50 50 1.969 65 2.559 10mm 27-34 20-25 KM50PKG3L 1,42 3.13 NOTE: Designed for centerline KM cutting units. A306 WWW.WIDIA.COM
