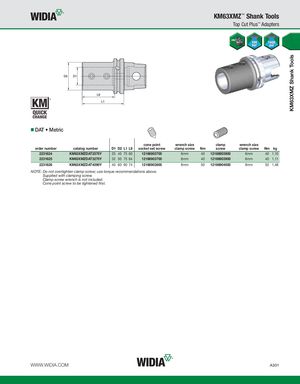

KM63XMZ Shank Tools KM63XMZ™ Shank Tools Top Cut Plus™ Adapters DAT • Metric cone point wrench size clamp wrench size order number catalog number D1 D2 L1 L9 socket set screw clamp screw Nm screw clamp screw Nm kg 2231624 KM63XMZDAT2575Y 25 45 75 60 12166903700 6mm 40 12166903900 6mm 40 1,10 2231625 KM63XMZDAT3275Y 32 50 75 64 12166903700 6mm 40 12166903900 6mm 40 1,11 2231626 KM63XMZDAT4090Y 40 60 90 74 12166903800 8mm 50 12166904000 8mm 50 1,48 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamping screw. Clamp screw wrench is not included. Cone point screw to be tightened first. WWW.WIDIA.COM A301
