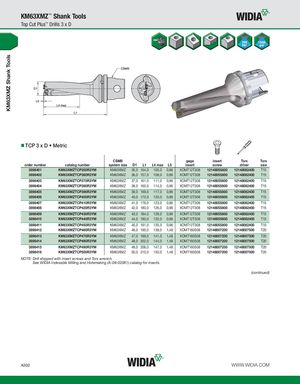

KM63XMZ Shank Tools KM63XMZ™ Shank Tools Top Cut Plus™ Drills 3 x D TCP 3 x D • Metric CSMS gage insert Torx Torx order number catalog number system size D1 L1 L4 max L5 insert screw driver size 3898401 KM63XMZTCP350R3YM KM63XMZ 35,0 154,0 105,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898402 KM63XMZTCP360R3YM KM63XMZ 36,0 157,0 108,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898403 KM63XMZTCP370R3YM KM63XMZ 37,0 161,0 111,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898404 KM63XMZTCP380R3YM KM63XMZ 38,0 165,0 114,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898405 KM63XMZTCP390R3YM KM63XMZ 39,0 169,0 117,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898406 KM63XMZTCP400R3YM KM63XMZ 40,0 172,0 120,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898407 KM63XMZTCP410R3YM KM63XMZ 41,0 176,0 123,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898408 KM63XMZTCP420R3YM KM63XMZ 42,0 180,0 126,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898409 KM63XMZTCP430R3YM KM63XMZ 43,0 184,0 129,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898410 KM63XMZTCP440R3YM KM63XMZ 44,0 190,0 132,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898411 KM63XMZTCP450R3YM KM63XMZ 45,0 191,0 135,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898412 KM63XMZTCP460R3YM KM63XMZ 46,0 195,0 138,0 1,48 XOMT160508 12148007200 12148007500 T20 3898413 KM63XMZTCP470R3YM KM63XMZ 47,0 199,0 141,0 1,48 XOMT160508 12148007200 12148007500 T20 3898414 KM63XMZTCP480R3YM KM63XMZ 48,0 202,0 144,0 1,48 XOMT160508 12148007200 12148007500 T20 3898415 KM63XMZTCP490R3YM KM63XMZ 49,0 206,0 147,0 1,48 XOMT160508 12148007200 12148007500 T20 3898416 KM63XMZTCP500R3YM KM63XMZ 50,0 210,0 150,0 1,48 XOMT160508 12148007200 12148007500 T20 NOTE: Drill shipped with insert screws and Torx wrench. See WIDIA Indexable Milling and Holemaking (A-09-02081) catalog for inserts. (continued) A302 WWW.WIDIA.COM
