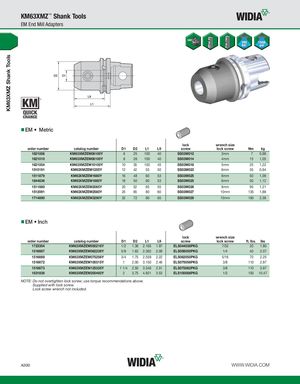

KM63XMZ Shank Tools KM63XMZ™ Shank Tools EM End Mill Adapters EM • Metric lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 1621006 KM63XMZEM06100Y 6 25 100 40 SS03M012 3mm 7 0,98 1621010 KM63XMZEM08100Y 8 28 100 40 SS03M014 4mm 15 1,05 1621054 KM63XMZEM10100Y 10 35 100 45 SS03M018 5mm 25 1,22 1510191 KM63XMZEM1255Y 12 42 55 50 SS03M023 6mm 35 0,94 1511879 KM63XMZEM1660Y 16 48 60 53 SS03M025 6mm 50 1,09 1844636 KM63XMZEM1860Y 18 50 60 53 SS03M025 6mm 50 1,12 1511880 KM63XMZEM2065Y 20 52 65 55 SS03M026 8mm 95 1,21 1512091 KM63XMZEM2580Y 25 65 80 60 SS03M027 10mm 135 1,88 1714890 KM63XMZEM3290Y 32 72 90 65 SS03M029 10mm 160 2,38 EM • Inch lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw ft. lbs. lbs 1723304 KM63XMZEM050216Y 1/2 1.38 2.165 1.97 ELS044038PKG 7/32 20 1.80 1516667 KM63XMZEM062236Y 5/8 1.63 2.362 2.09 ELS056050PKG 1/4 40 2.07 1516669 KM63XMZEM075256Y 3/4 1.75 2.559 2.22 ELS062050PKG 5/16 70 2.25 1516672 KM63XMZEM100315Y 1 2.00 3.150 2.46 ELS075056PKG 3/8 110 2.87 1516673 KM63XMZEM125335Y 1 1/4 2.50 3.346 2.51 ELS075062PKG 3/8 110 3.97 1831838 KM63XMZEM200492Y 2 3.75 4.921 3.53 ELS100088PKG 1/2 150 10.47 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. A300 WWW.WIDIA.COM
