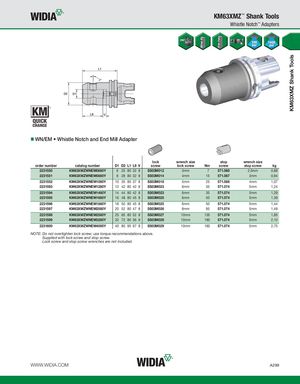

KM63XMZ Shank Tools KM63XMZ™ Shank Tools Whistle Notch™ Adapters 2º WN/EM • Whistle Notch and End Mill Adapter lock wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw lock screw Nm screw stop screw kg 2231550 KM63XMZWNEM0680Y 6 25 80 32 8 SS03M012 3mm 7 571.060 2,5mm 0,88 2231551 KM63XMZWNEM0880Y 8 28 80 32 8 SS03M014 4mm 15 571.067 3mm 0,94 2231552 KM63XMZWNEM1080Y 10 35 80 37 8 SS03M018 5mm 25 571.068 4mm 1,07 2231593 KM63XMZWNEM1280Y 12 42 80 42 8 SS03M023 6mm 35 571.074 5mm 1,24 2231594 KM63XMZWNEM1480Y 14 44 80 42 8 SS03M023 6mm 35 571.074 5mm 1,29 2231595 KM63XMZWNEM1680Y 16 48 80 45 8 SS03M025 6mm 50 571.074 5mm 1,39 2231596 KM63XMZWNEM1880Y 18 50 80 45 8 SS03M025 6mm 50 571.074 5mm 1,44 2231597 KM63XMZWNEM2080Y 20 52 80 47 8 SS03M026 8mm 95 571.074 5mm 1,49 2231598 KM63XMZWNEM2580Y 25 65 80 52 8 SS03M027 10mm 135 571.074 5mm 1,85 2231599 KM63XMZWNEM3280Y 32 72 80 56 8 SS03M029 10mm 160 571.074 5mm 2,10 2231600 KM63XMZWNEM4095Y 40 80 95 67 8 SS03M029 10mm 160 571.074 5mm 2,75 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches are not included. WWW.WIDIA.COM A299
