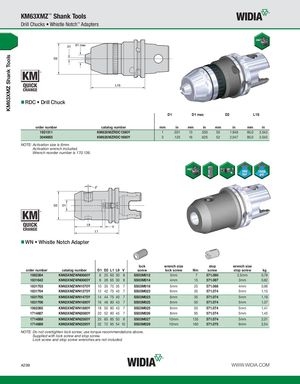

KM63XMZ Shank Tools KM63XMZ™ Shank Tools Drill Chucks • Whistle Notch™ Adapters RDC • Drill Chuck D1 D1 max D2 L1S order number catalog number mm in mm in mm in mm in 1921511 KM63XMZRDC1390Y 1 .031 13 .500 50 1.949 90,0 3.543 3049855 KM63XMZRDC1690Y 3 .125 16 .625 52 2.047 90,0 3.543 NOTE: Activation size is 6mm. Activation wrench included. Wrench reorder number is 170.136. WN • Whistle Notch Adapter lock wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw lock screw Nm screw stop screw kg 1982384 KM63XMZWN0660Y 6 25 60 30 8 SS03M012 3mm 7 571.060 2,5mm 0,76 1831642 KM63XMZWN0865Y 8 28 65 30 8 SS03M014 4mm 15 571.067 3mm 0,82 1831703 KM63XMZWN1070Y 10 35 70 35 7 SS03M018 5mm 25 571.068 4mm 0,96 1831704 KM63XMZWN1275Y 12 42 75 40 7 SS03M023 6mm 35 571.074 5mm 1,15 1831705 KM63XMZWN1475Y 14 44 75 40 7 SS03M023 6mm 35 571.074 5mm 1,19 1831706 KM63XMZWN1680Y 16 48 80 43 7 SS03M025 6mm 50 571.074 5mm 1,37 1982385 KM63XMZWN1880Y 18 50 80 43 7 SS03M025 6mm 50 571.074 5mm 1,41 1714887 KM63XMZWN2080Y 20 52 80 45 7 SS03M026 8mm 95 571.074 5mm 1,45 1714888 KM63XMZWN2585Y 25 65 85 50 8 SS03M027 10mm 135 571.074 5mm 2,01 1714889 KM63XMZWN3295Y 32 72 95 54 10 SS03M029 10mm 160 571.075 6mm 2,54 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches are not included. A298 WWW.WIDIA.COM
